2poli_en
3000/3600 RPM
4poli_en
1500/1800 RPM
6poli_en
1000/1200 RPM
8poli_en
750/900 RPM
2poli_en
3000/3600 RPM
4poli_en
1500/1800 RPM
6poli_en
1000/1200 RPM
8poli_en
750/900 RPM
2poli_en
3000/3600 RPM
4poli_en
1500/1800 RPM
6poli_en
1000/1200 RPM
8poli_en
750/900 RPM
2poli_en
3000/3600 RPM
4poli_en
1500/1800 RPM
6poli_en
1000/1200 RPM
8poli_en
750/900 RPM

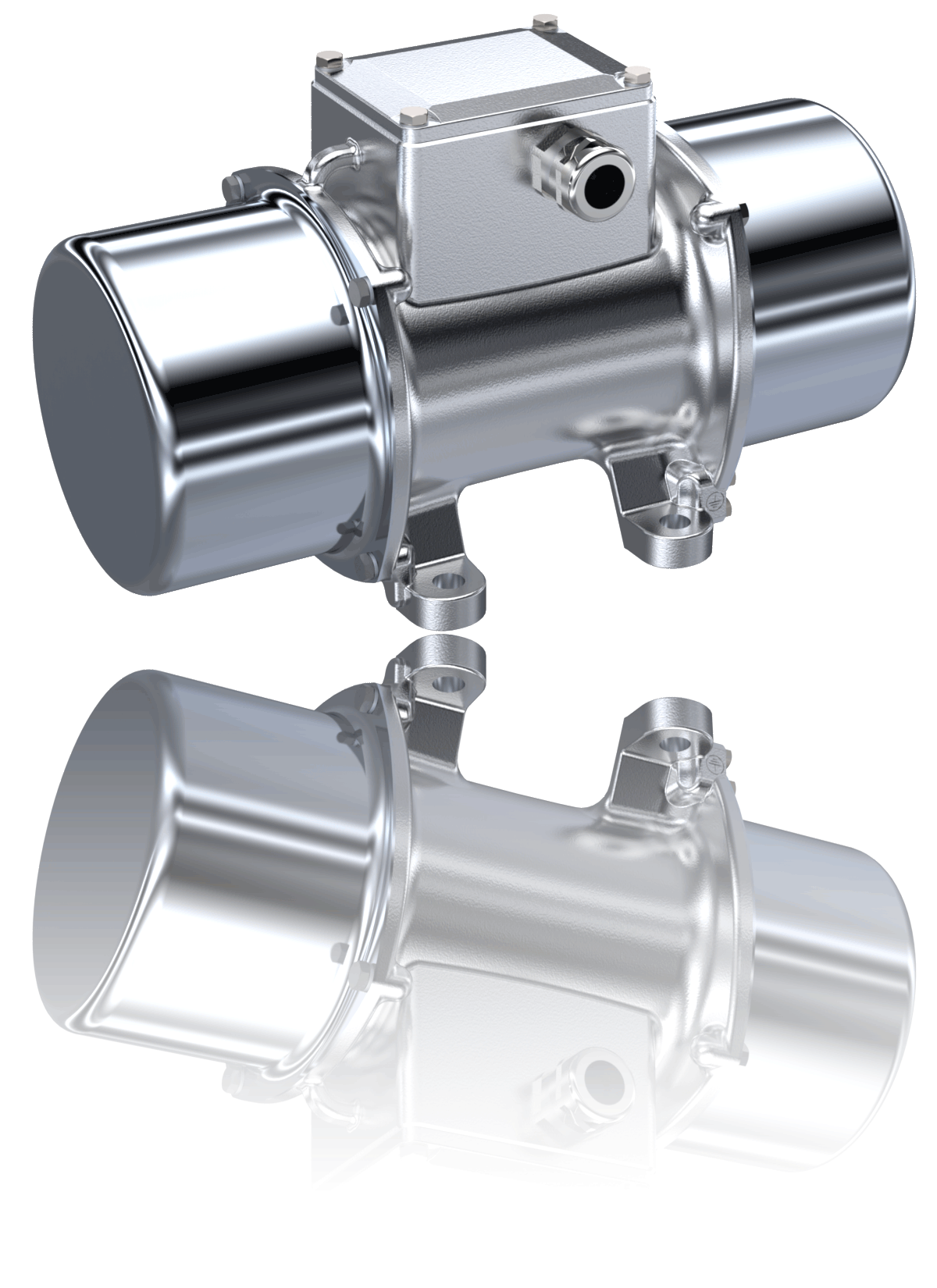

The MVSS stainless steel series vibrators are characterized by their total protection from liquids, dusts, aggressive agents and contaminants, thanks to the stainless steel casing and external components go to this website.

no EX certification

Power supply

Three-phase voltage from 24V to 690V, 50Hz or 60Hz or single−phase 100-130V 60Hz and 200-240V, 50Hz; suitable for use with a PWM frequency drive from 20Hz to the base frequency with constant torque load profile.

Polarity

2, 4, 6 and 8 poles

Functioning

Continual service (S1) at maximum declared centrifugal force and electric power.

Centrifugal force

Range extended up to 9350 lbs. (42.4KN)

Insulation class

Class F (311°F), class H (356°F) on request.

Electric motor

Three-phase and single−phase asynchronous type. Insulated windings using vacuum encapsulating up to size 35; using the “drop by drop” trickle system with class H resin for larger sizes. The rotor is die cast aluminum.
