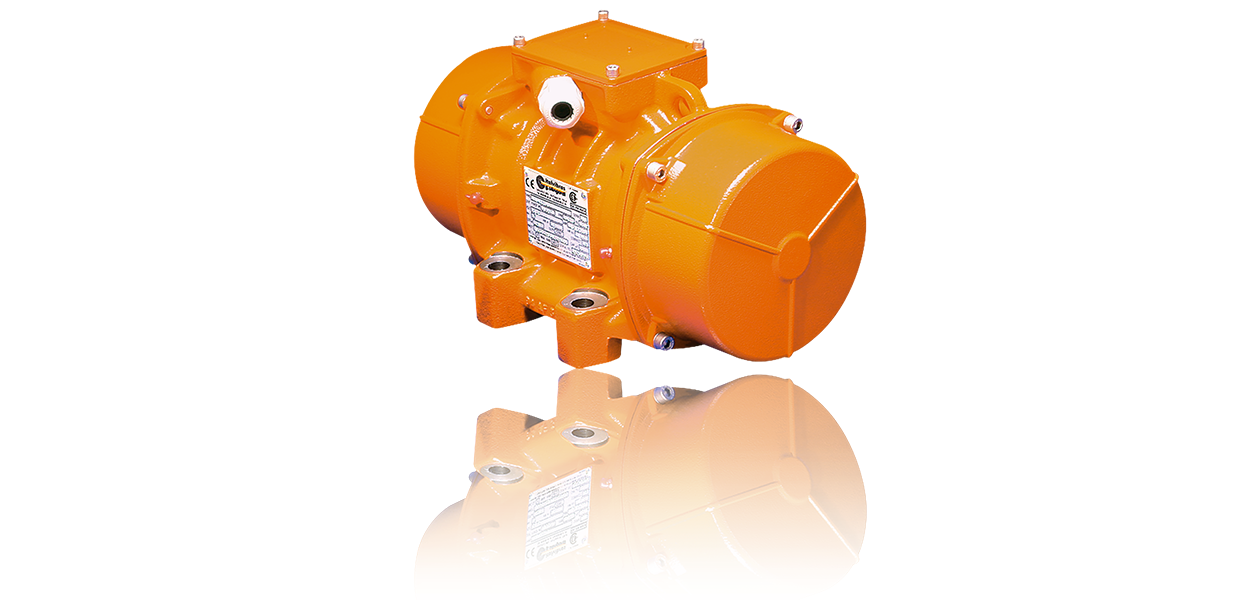

Fixed frequency electric vibrators, suitable to be applied to systems and machines in the precasting industry and whenever a high fixed frequency vibration is requested. The ITVAF series electric vibrators with fixed vibration (6000 or 9000 rpm) provide a centrifugal force of up to 3200 lbs (14,6 kN).
They are available with either the fixed or cradle connection (RS types).

CATEGORY

EC

Power supply

Three-phase voltage from 24V to 690V at the various frequencies, depending on the type and series. italvibrasusa can supply variable frequency drive VIBRAVAR and different types of variable frequency equipments (CFV, MULTIVAR).

Operation

Continuous service (S1) at the maximum declared centrifugal force and electric power values.

Centrifugal force

Range extended up to 3200 lbs (14,8kN).

Insulation class

Class F (311°F).
